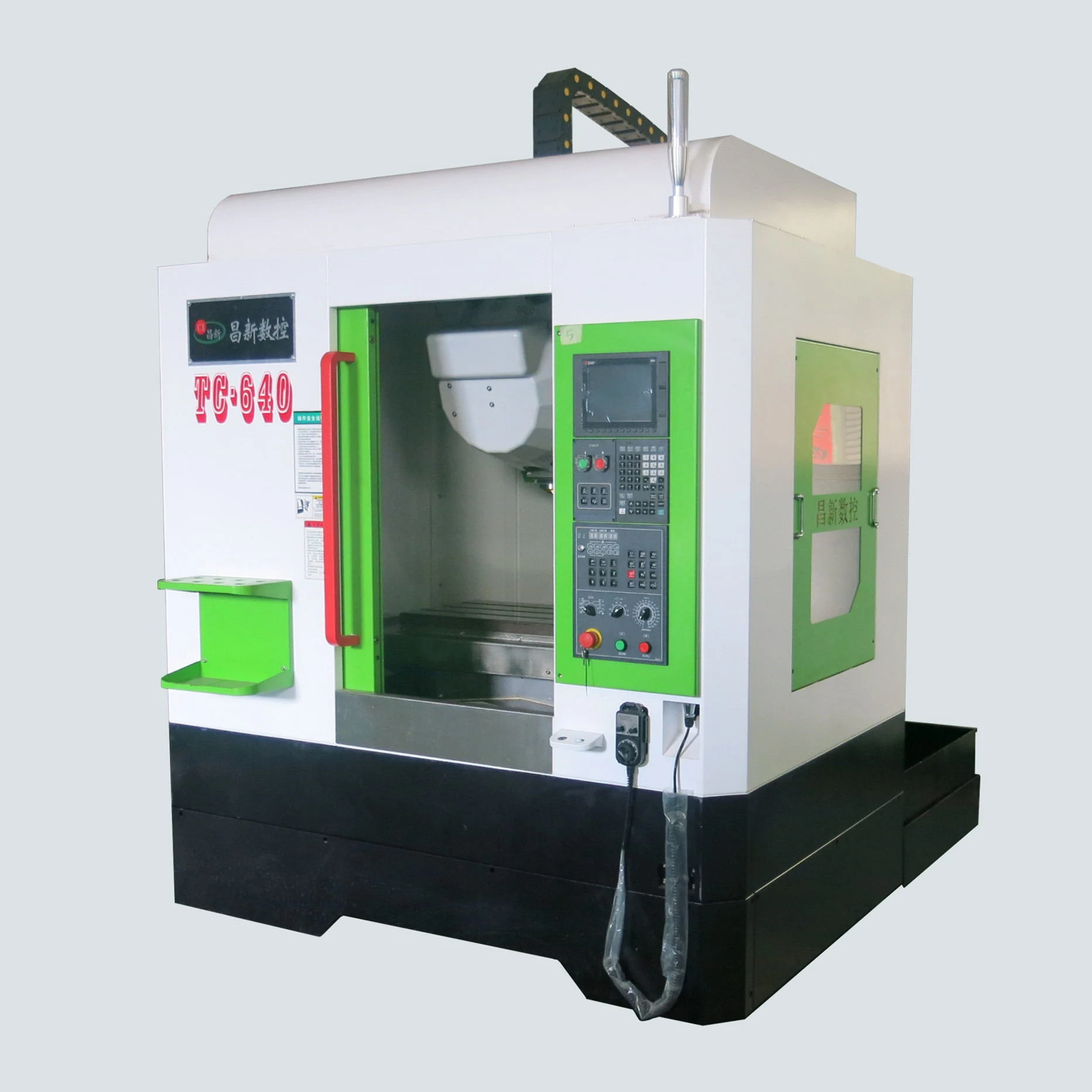

Fast speed high performance CNC drilling tapping machine center automatic with CE certificate TC-640
Payment Term:
Payment: 40% deposit, the balance will be paid before shipping.
Delivery:
20-30 days after received the deposit payment.
Remarks:
1. Warranty: One year free warranty and life time maintenance.
2. Loading port: Shenzhen/Guangzhou
3. Engineers are available to serve overseas, you are responsible for the air tickets and accommodations expenses. The price above is not including this expenses.
Our certificates:
Our Customers:
| Features: | |||
| * cast iron high strength body * Taiwan Syntec, Japan MITSUBISHI, Fanuc, Germany Siemens nc system * Taiwan spindle BT30 direct drive * Hiwin/PMI ball screw * NSK bearing * HIwin linear guide rails * The cutting of the cooling system * Full enclosed guard * Automatic lubricating system * Mechanical abnormal alarm trichromatic lamp * BT30 clip arm type servo tool magazine (tool changing 0.8 sec) | |||
| Specifications: | |||
| Table | Size | mm | 700*420 |
| Travel of 3 axis(X/Y/Z) | mm | 600/400/300 | |
| Max table load | Kg | 350 | |
| T-slot | Number*width*space | mm | 3*18T*100 |
| Spindle (direct drive) | Spindle taper | BT30 | |
| Spindle center to column | mm | 450 | |
| Spindle nose to table | mm | 120-420 | |
| Max spindle speed | Rpm | 20000 | |
| Spindle Motor power | Kw | 5.5 | |
| Accyracy | Positioning accuracy | mm | ±0.005/300 |
| Repeatability | mm | ±0.003/300 | |
| Axis motor | Power of X/Y/Z | Kw | 1.5/1.5/3.0 |
| Feeding Speed | Rapid feed of X/Y/Z | mm/min | 48000 |
| Cutting feed of X/Y/Z | mm/min | 20000 | |
| Parameters | Weight | Kg | 4000 |
| Dimension(L*W*H) | mm | 2300*1700*2500 | |
| Power | V | 380 | |
| Bearing | Japan NSK or German FAG optional | ||
| Linear guide rail and ball screw | Taiwan Hiwin | ||
| Coupling | German BK3 SW*J | ||
| Main electrical accessories | German Schneider, Merlin Gerin | ||
| Circuit breakers and relays | German Schneider, Merlin Gerin | ||
| Working LED lamp | Taiwan | ||
| Hand control electronic hand wheel | Taiwan | ||
| Tool Magazine | Taiwan clip arm type servo tool magazine with 21 tools capacity | ||
| Control System | Taiwan Syntec, Japan Mitsubishi, Japan Fanu, Germany Siemens optional | ||
| Motor | Japan YASKAWA /Mitsubishi /Fanuc/Siemens Servo Motor | ||
| Accessory | 1. Tool box (1 set) 2. Tool Holder(2 PCS) 3. Vise and Lock knife seat (1 set) 4. High pressure spray gun(1 PCS) 5. Chip conveyor 6. Oil cooling station 7. Collets (4 PCS) 8. Hand Wheel(1 PCS) 9. Machine operating manual 10. Operation and programming manual 11. Servo Motor and Controller Manual | ||
| 4th/5th Axis Rotary Table Optional | |||
 |  | ||
| Taiwan TJR 4th Axis Rotary Table with Tail Stock (AR-125R) | Taiwan TJR 5th Axis Rotary Table (FAR-125) | ||
