CNC VMC Machine CNC Vertical Machining Center
| Item | Unit | VMC1270 |
| X/Y/Z Axis travel | mm | 1200x700x700 |
| Spindle nose to table | mm | 100-800 |
| Working table size | mm | 1300x650 |
| T-Slot | mm | 18x5 |
| Max. load | kg | 700 |
| Spindle speed | rpm | 8000 |
| Spindle taper | BT40-150 | |
| Spindle power | kw | 11/15 |
| Cutting speed | mm/min | 1-12000 |
| X/Y/Z fast speed | m/min | 24 |
| Positioning accuracy | mm | 0.01/300 |
| Machine weight | kg | 7000 |
| Dimensions | mm | 3000x2600x2700 |

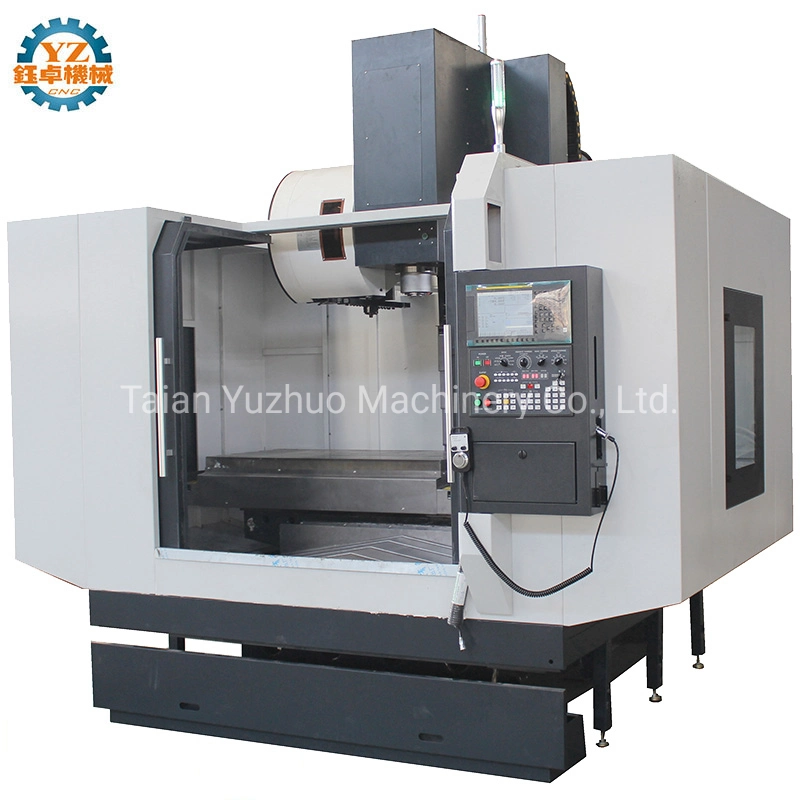

Machine Images
Standard Configurations:
1. FANUC 0i-MF cnc system.
2. Taiwan BT40-150-8000 spindle.
3. Taiwan 24T Arm Type Tool Changer.
4. Taiwan Hiwin Ball Screw and Linear Guideway.
5. Auto Lubrication System.
6. Cooling System.
7. Work Lamp.
8. Full Enclosure Machine Guard
Optional Configurations:
1. GSK KND Siemens Fanuc Mitusbishi GUNT.
2. Arm type ATC.
3. Automatic chip conveyor.
4. 4th axis and 5th axis.
5. Spindle oil coolant, Center to water.
6. Renishaw probe for workpiece and tool.
Optional Configuration Photos:
