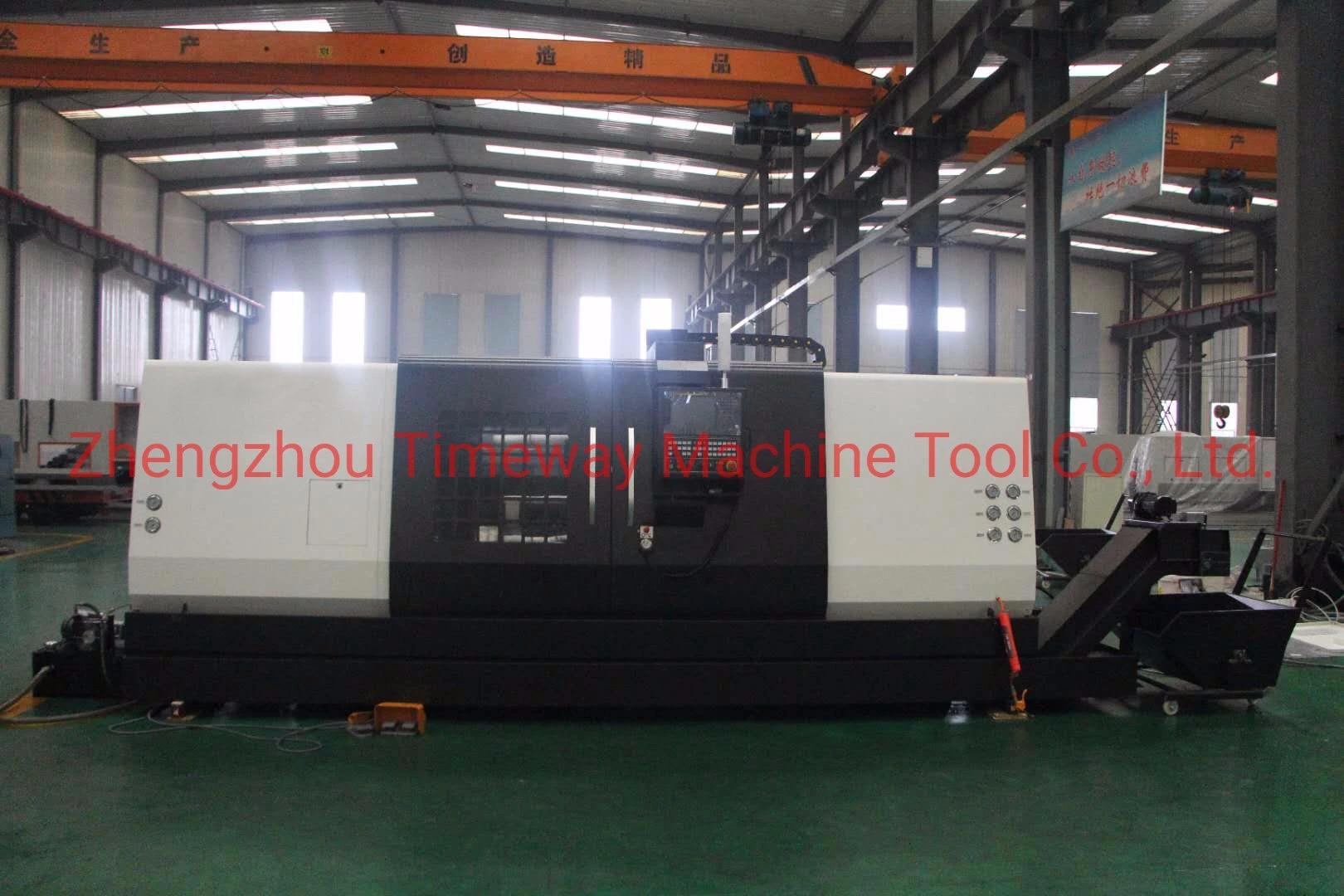

Special purpose CNC lathe for Oil cylinder (Hydraulic cylinder)

Model: CK-46YG, CK-56YG, CK-63YG, CK-78YG


Introduction:
This series CNC lathe is mainly designed with double spindle structure for processing oil cylinder, piston, guide sleeve, movable column and piston rod parts in hydraulic and coal machinery industries. Equipped with advanced CNC system, it can interpolate straight line, obique line and arc (turning cylinder face, turning surface, spherical surface, and conical surface) and turning straight, tapered metric or inch thread.

Special Purpose CNC Lathe for Oil Cylinder (Hydraulic cylinder)

Special Purpose CNC Lathe for Oil Cylinder (Hydraulic cylinder)

Special Purpose CNC Lathe for Oil Cylinder (Hydraulic cylinder)

Special Purpose CNC Lathe for Oil Cylinder (Hydraulic cylinder)
Special Purpose CNC Lathe for Oil Cylinder (Hydraulic cylinder)
Special Purpose CNC Lathe for Oil Cylinder (Hydraulic cylinder)
Special Purpose CNC Lathe for Oil Cylinder (Hydraulic cylinder)


Main Technical ParameterCK-46YGCK-56YGCK-63YGCK-80YG
CapacitySwing over bed5606307801050
Max turning diameter460560630780
Swing over cross slide400500600800
Distance between centers1500/2000/30002000/3000/40003000/4000/50003000/4000/5000
Slant bed layout angle45757575
SpindleSpindle nose typeA2-8A2-8A2-11A2-11
Spindle bore taperMetric 80Metric 80Metric 100Metric 120
Spindle bore808090100
Spindle speed steptsHydraulic 2 shifts+Stepless
Spindle speed range50-120050-120050-100050-800
Hydraulic chuck10121520
Main spindle motor1518.52230
 Vice spindleWay of movingIndependent servo movementIndependent servo movementIndependent servo movementIndependent servo movement
Quill diameter160190190190
Quill travel100120120120
Hydraulic chuck8101215
Steady restWay of movingPallet hangingPallet hangingPallet hangingPallet hanging
Clamping rangeΦ50-Φ250Φ45-Φ310/Φ85-Φ350/Φ100-Φ320Φ120-Φ400/Φ230-Φ430Φ150-Φ500/Φ300-Φ600
Repeat positioning accuracy0.010.010.010.01
TurretTurret/tool postHydraulic turret 12 position
Tool shank size 25 x 2532 x 3232 x 3232 x 32
Boring toll holder sizeΦ50Φ60Φ60Φ60/Φ80
FeedX axis travel245315335400
Z axis travel1550/2050/30502050/3050/40503050/4050/50503050/4050/5050
Motor torque(X/Z)22/2222/2222/2222/22
X axis rapid traverse12000 Hard guideway10000 Hard guideway10000 Hard guideway10000 Hard guideway
Z axis rapid traverse12000 Hard guideway10000 Hard guideway10000 Hard guideway10000 Hard guideway
X/Z axis 0.0010.0010.0010.001
Chip conveyorCoolant pump motor0.370.370.370.37
AccuracyFine turning accuracyIT6IT6IT6IT6
Fine turning roughness (μm)0.80.80.80.8
DimensionWidth x Height1750 x 18002350 x 25002350 x 25002570 x 2600
Length (chip conveyor included)--------
WeightNet weight12.5/15/1818/20/2228/32/3628/32/36
