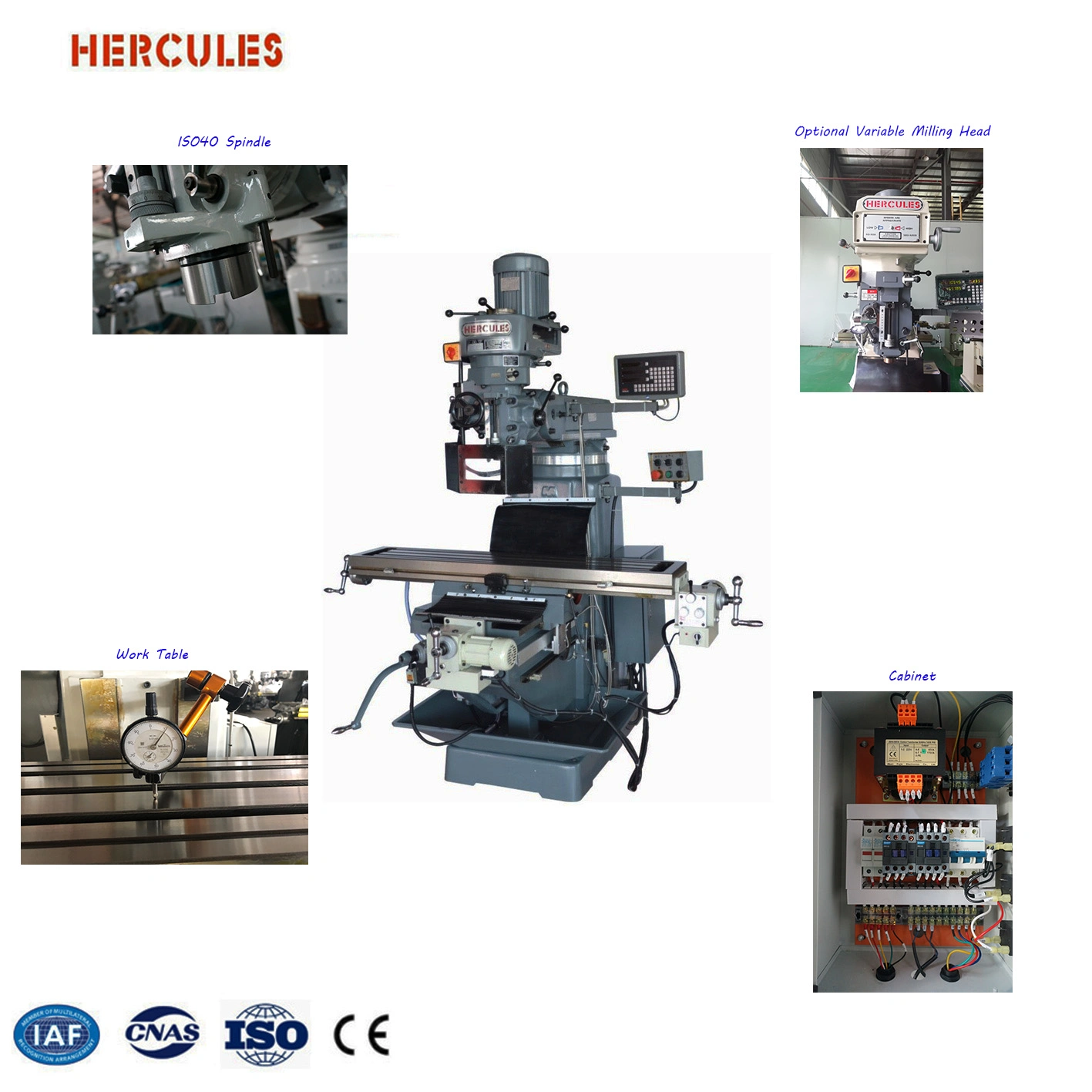

M4vb Milling Machine, Metal Milling Machine, Vertical Turret Milling Machine for Indian Market

Advantage!!1. High-frequency heat treatment for working table : hardness is over HRC48 and the harden thickness is up to 3mm.2. All slide with high quality imported Turcite B, and well hand scraping with perfect match and oil containing , and the well lubrication ensure the long lasted for the machine and accuracy resistance.&nb

Featured Products

Advantage!!
1. High-frequency heat treatment for working table : hardness is over HRC48 and the harden thickness is up to 3mm.
M4vb Milling Machine, Milling Machine for Metal, Vertical Turret Type Milling Machine, for India Market


2. All slide with high quality imported Turcite B, and well hand scraping with perfect match and oil containing , and the well lubrication ensure the long lasted for the machine and accuracy resistance.
M4vb Milling Machine, Milling Machine for Metal, Vertical Turret Type Milling Machine, for India Market   M4vb Milling Machine, Milling Machine for Metal, Vertical Turret Type Milling Machine, for India Market


3. HT250 grain casting with Meehanited standard processing .And materials strictly added with Nickel, brass, Chrome and Rare-earth , and the physical performance and rigidity of casting is well improved.
M4vb Milling Machine, Milling Machine for Metal, Vertical Turret Type Milling Machine, for India Market


4. For the important parts like working table and saddle, we tempered twice during the machining.
M4vb Milling Machine, Milling Machine for Metal, Vertical Turret Type Milling Machine, for India Market  M4vb Milling Machine, Milling Machine for Metal, Vertical Turret Type Milling Machine, for India Market

5. Key parts(for high speed driving) for the head are imported from Taiwan , and the accuracy , rigidity and DB voice of the head with well performance .
M4vb Milling Machine, Milling Machine for Metal, Vertical Turret Type Milling Machine, for India Market  M4vb Milling Machine, Milling Machine for Metal, Vertical Turret Type Milling Machine, for India Market


! Specification of machine :
ModelM4VB
 Precision High Accuracy Series
Table size(L*W)(mm)1270x254
Max.load of table (kg)300
X axis(mm)900                810 with power feed
Y axis(mm)380
Z axis (mm)360
Work table T slot
 (No.-size*pitch)   (mm)
3-15.88x65
Distance between spindle and table(mm)50-410
Ram travel (mm)520
Travel of spindle quill (mm)127
Auto crossward feed(mm/rev)0.04/0.08/0.15
Spindle speed(rpm)80-5440 rpm  16steps
Spindle hole taperR8 / NT30 (optional )
Main Motor3HP
Tilt angle for milling headleft and right±90º forward and backward±45º
Guiding tracks(X.Y.Z)
Dimension(L*W*H)(mm)1750x1650x2150
Milling headRound step milling head
Weight (kg)1300
