Deep Hole Rock Drill Shank Adapter Impact Bar

Rock drill brands: Atlas Copco, Tamrock, Ingersoll Rand, Boart Longyear, Furukawa, Montabert, Soonsan, Everdigm, others.Thread models: R25, R28, R28, R32, R32, R35, R35, R38, T38, T45, T51, ST58, GT60, ST68. Shank adapters are used for transmitting power from the rock drill to the drill stems. Generally there are male threa

Featured Products

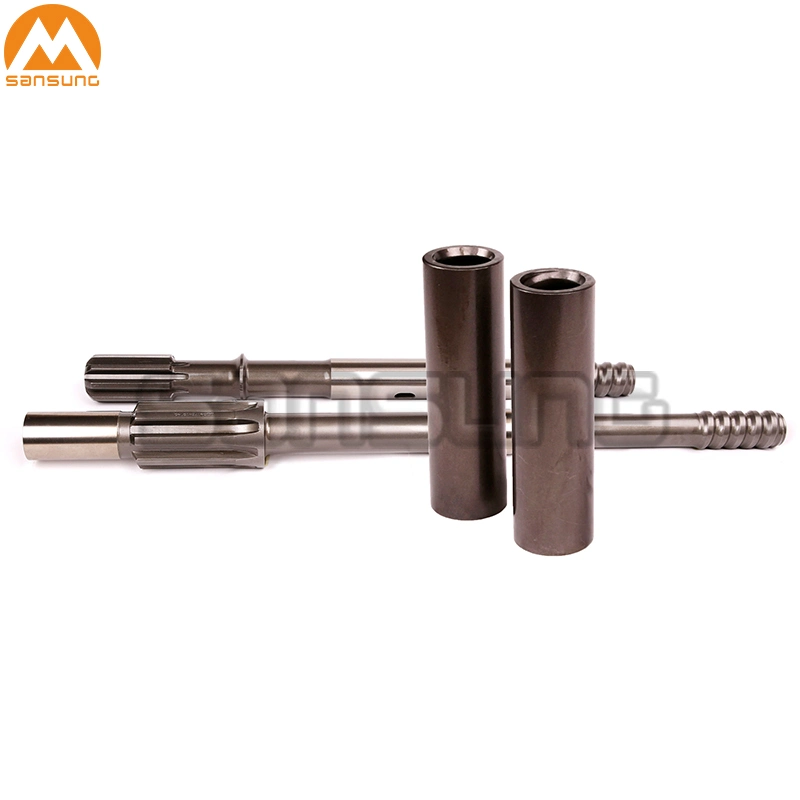

Deep Hole Rock Drilling Shank Adapter Striking Bars

Rock drill brands
: Atlas Copco, Tamrock, Ingersoll Rand, Boart Longyear, Furukawa, Montabert, Soonsan, Everdigm, others.

Thread models: R25, R28, R28, R32, R32, R35, R35, R38, T38, T45, T51, ST58, GT60, ST68.



Shank adapters are used for transmitting power from the rock drill to the drill stems. Generally there are male threaded shank adapters and famal threaded shank adapters. Male shank adapters are more populaer than famale shank adapter. Male shank adapter are generally suited for drifting, tunneling and extension applications where high stresses are present. Females shankadapters are used when the drilling space is limited.



Sansung shank adapters ensure a quality drill string interface to the most exacting industry tolerances. Built to seamlessly interface with hydraulic and pneumatic drifters and top hammers, our shank adapters come in a full range of industry-standard thread configurations. Our precision grinding process ensures straightness, and our tools are fully carburized with an advanced heat treatment.



Different shank adapters are available, like Atlas Copco, Tamrock, Ingersoll Rand,etc. Also for the same drill machine, due to different applications, the shank adapters can be different length and different threads.

  • Atlas Copco (COP1238, COP1838, COP1032 and etc)

  • Furukawa (HD715, HD612, HD609, PD200 and etc)

  • Ingersoll-Rand (VL140, VL671, YH80A and etc)

  • Tamrock(HLX5, HL600, HL500, HL300, HL 700, HL850, HL1000, HL1500 and etc)



    ThreadManufacturerDrifterLength(mm)Weight(kg)
    R32FurukawaHD120/200,M120349.33.12
    R32Gardner-DenverPR123,PR133349.33.12
    R32Ingersoll-RandEvl130, VL120/140349.33.12
    R38Atlas-CopcoBBE 51/52/574484.9
    R38FurukawaHD120/200,M120349.33.26
    R38Ingersoll-RandEvl130, VL120/140349.33.26
    R38JoyVCR260/360390.53.6
    R38MontabertH1004484.9
    R38TamrockHL8444484.9
    R38TamrockL600 / 750349.33.26
    T38Atlas-CopcoBBE56/57530.45.5
    T38Atlas-CopcoCOP1036/10385905
    1038ME/1238ME
    T38FurukawaHD120/200,M120349.33.4
    T38FurukawaPD2004843.6
    T38Gardner-DenverHPR1H(12 Spline)7256.8
    T38Gardner-DenverPR123/133/55349.33.4
    T38Ingersoll-RandELV130349.33.4
    T38Ingersoll-RandELV130349.33.4
    T38Ingersoll-RandHC80RP (shot)6697.9
    T38Ingersoll-RandVL120/140349.33.4
    T38JoyVCR260/360390.53.6
    T38MontabertHC805916.68
    T38MontabertHC80RP(Shot)6697.9
    T38MontabertHC80RP(Long)7718.5
    T38TamrockHL438/538/8444953.6
    T38TamrockL600/750349.33.4
    T45Atlas-CopcoBBE56/57/57-01530.45.7
    T45Atlas-CopcoCop1036/1038/1238ME 5905
    T45FurukawaHD120/200,M120349.33.6
    T45Gaedner-DenverHPR1H 12Spline7255.7
    T45Gaedner-DenverPR132349.35
    T45Gaedner-DenverPR66558.83.6
    T45Ingersoll-RandEVL130,VL140349.55
    12 Spline
    T45Ingersoll-RandEVL130, VL120/140558.83.6
    T45Ingersoll-RandVL671 w 3/4" tube349.55.9
    T45Ingersoll-RandVL671 w 9/16" tube533.46

Deep Hole Rock Drilling Shank Adapter Striking Bars
Deep Hole Rock Drilling Shank Adapter Striking Bars
Deep Hole Rock Drilling Shank Adapter Striking Bars
Deep Hole Rock Drilling Shank Adapter Striking Bars
