wear-resistant POM gear CNC machine gear wheel plastics gear
POM (Full-name: Polyformaldehyde), is a engineering plastics of non-side-chain, high density, high crystalline and linear polymer, which is praised "Plastic Steel", and has comprehensive excellent performances, such as: wear-resistance, high hardness, anti-impregnant, good rigidity (Tensile modulus of elasticity), chemical stability, isolation resistance and dimensional stability. POM has widely applied in Automobile industries, electronic and electric products, commodity, pipeline & fittings, exact apparatus and so on, which can be instead of the bronze, Zinc, tin and other metals.
Except POM-H, is often copolymerized with ethylene oxide together, in order to avoid the melting of POM material in the high temperature. POM-H has the better performances than POM-C in its high crystalline, mechanical strength and rigidity. And POM-C has the better performances than POM-H in its low melting point, temperature stability, fluxion characteristic and machining capability.
Father more, POM-H+PTFE, which is made from the Delrin POM Resin that maxed Teflon fiber symmetrically, has the low co-efficient of frication, good lubrication, wear-resistance, non-creepage resistance.
Data Sheet of POM
|2||Water absorption(23ºC in air)||%||0.20||0.20||0.17|
|4||Tensile strain at break||%||35||35||10|
|5||Compressive stress(at 2%nominal strain)||MPa||35||40||37|
|6||Charpy impact strength (unnotched)||KJ/m2||≥150||≥200||≥30|
|7||Charpy impact strength (notched)||KJ/m2||7||10||3|
|8||Tensile modulus of elasticity||MPa||3100||3600||3200|
|9||Ball indentation hardness||N/mm2||140||160||140|

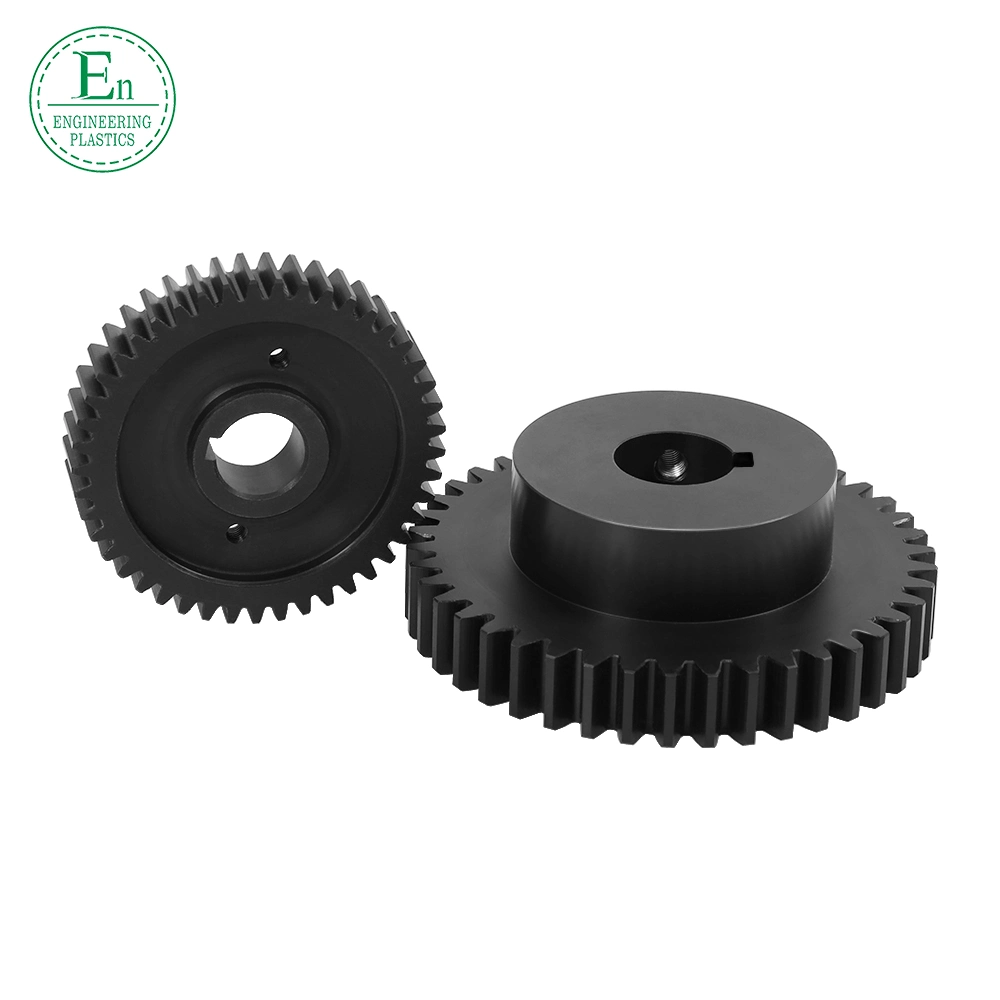

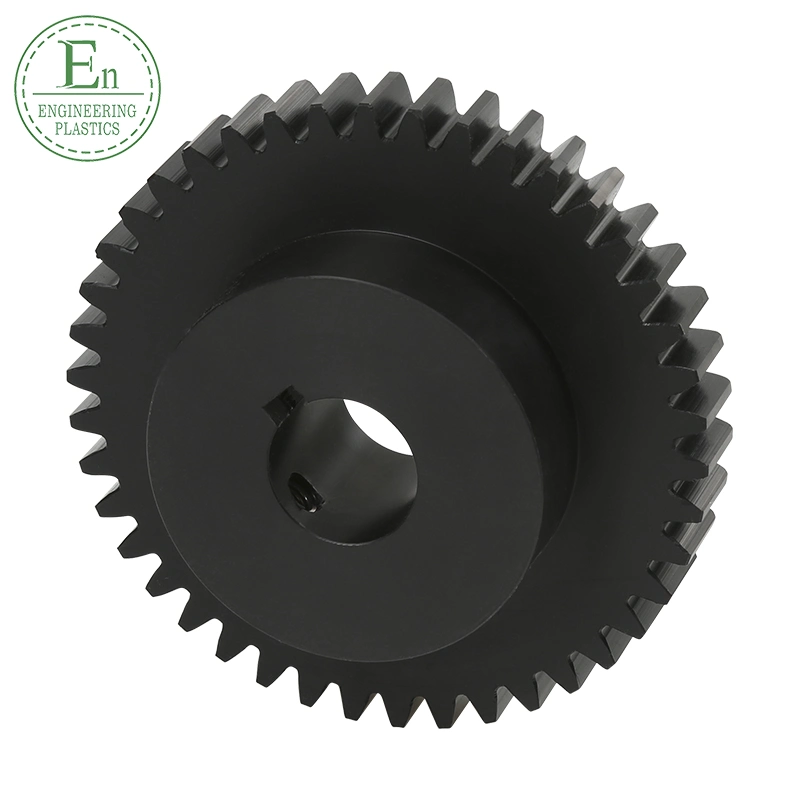

plastic gear pinion
POM / Derlin / Acetal or customized
|Diameter||5-200mm or customized|
|Color||White,Black,Natural,Rice Yellow brown ,ect.|
|OEM & ODM||Yes|
|Shape||sheet, rod, tube, gear, pulley, guide rail......you can customize as you need|
|Packing||Plastic bags,Cartons,Wodden case,Pallet,Container,ect.|
|Advantage||One stop procurement|
