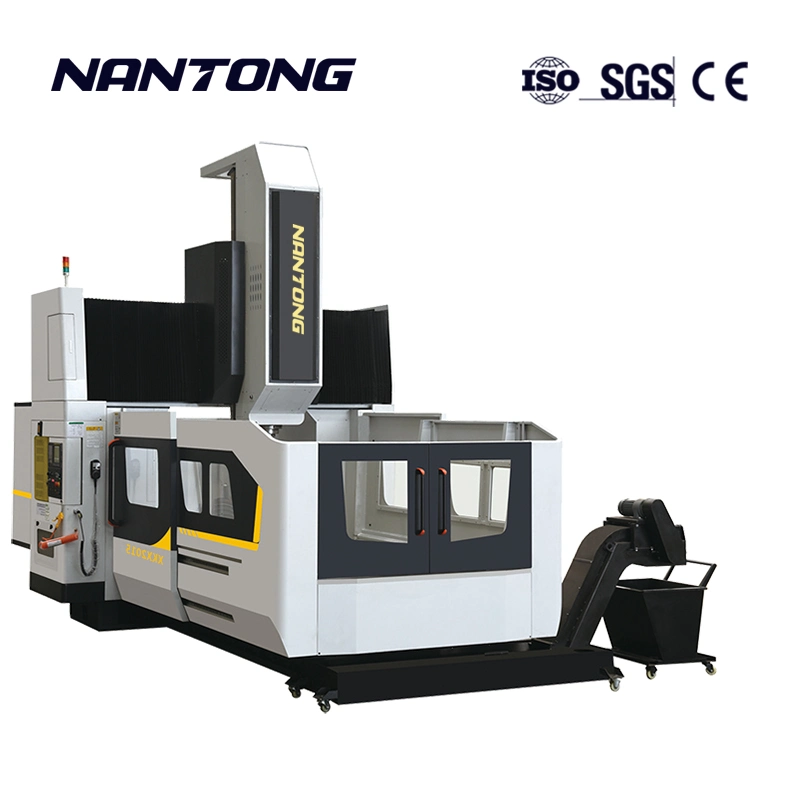

CNC Gantry Milling Machine/5 Axis Gantry Mill Skx

Machine Parameters
X axismm2,2002,7003,2004,200
Y axismm1,600 / 2,000/2500/3000
Z axismm800(1,000-opt.)
Distance from spindle nose to tablemm150 - 950(150 / 1,150-opt.)
Distance between two columnmm1,700 / 2,100/2600
Working table
Table Lengthmm2,0002,5003,0004,000
Table Widthmm1,600 / 2,000
Table Loadkg6,0007,0009,00010,000
T- Slot (Width x Number x Pitch)mm22x7x180 / 22x9x180
Spindle Taper-BT-50 / ISO-50 / CAT-50
Spindle Speedrpm3,000(6,000-opt.)
Spindle motor(cont./30 minutes rated)kw18.5 / 22 (22/26-opt.)
Rapid Traverse(X/Y/Z)m/min12 / 12 / 1510 / 12 / 15
Cutting feedratemm/min7,000
Positioning Accuracymm±0.005 / 300 ; ±0.015 / Full travel
Tool magazine capacitypcs32 (24/40/60-opt.)
Max. tool size (full pocket/next pockets empty)mmØ125/245
Max. tool lengthmm350
Max. tool weightkg20
Power requiredkva65
Pneumatic input pressurekg/cm26.5
Machine net weighttons20 / 2222 / 2424 / 2628 / 30
Floor space (LxWxH)m8.5x5.1(5.5)x4.710.5x5.1(5.5)x4.712.5x5.1(5.5)x4.715.2x5.1(5.5)x4.7

Machine Configuration
Automatic lubrication system
Spindle oil cooler
Air blast through spindle
Manual Pulse Generator
Working lamp
3-color alarm lamp
RS-232 interface
Heat exchanger for electrical cabinet
Water gun and air gun interface
Cutting coolant system
Twin auger chip removal system
Belt type chip conveyor with cart
X axis Heidenhain Linear Scale
3 axes manual pulse generator for mold processing
Coolant through spindle at 20/40/70 bar
Coolant through tool holder interface
Air conditioner for electrical cabinet
Oil skimmer
Oil mist collector

CNC Gantry Milling Machine/5 Axis Gantry Mill Skx

Company IntroductionCNC Gantry Milling Machine/5 Axis Gantry Mill Skx


Nantong YIJI Machinery Co., Ltd was founded in 1988,which specialized in manufacturing move column cnc machine center, floor type boring machine, cnc gantry milling machine, automatic solution and professional machine tools. Nantong YIJI Machinery Co., Ltd has integrated business concept of "Quality is essence, excellence, full participation", and constantly casting and enhance the "YIJI" machine Brand quality. Relies on Specialized design, mature production workman ship, Strict QC Management, quick integrated solution, nice after service and has won trust from vast customers. Our market share has been expanded .Our products with more varieties, full range ,have enjoyed good sales to the 30 countries in Europe, America, Southeast Asia. And Have won good reputation So far. Our company has enjoyed import/export rights, obtained export product license, CE certificated and Passed ISO9001 quality system certification.
Innovation is endless. Techniques Change future. We will like to supply you our professional technology, quality machines and best service.

Our Service

Warranty & After-sale service
1. 24-hours technical support by E-mail or telephone.
2. Provide extra accessories for the machine, Also provide service of make program according to your drawings Customized or special design is OK.
3. All of our products' warranty period for 12 months.
4. Man-made destroy will be exception
5.We can supply the materials or tech support to our customers to help them fix the problems.
We will pay the delivery charge if the repair, return or replacement cases happen.
